ACP 1000

Code: ADB ACP 1000
ADB

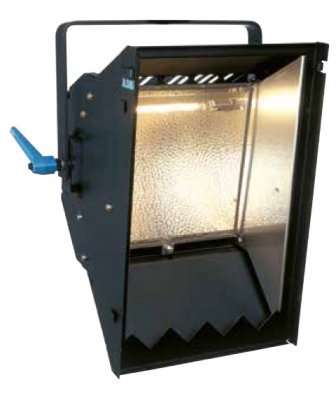

Cyclorama light with asymmetrical reflector for use with gel filter.

The ACP Cyclorama lights features a unique combination of an asymmetrical reflector and 2, highly reflective side mirrors to provide high quality lighting for both studio and stage applications.

These fixtures are ideal for creating an homogenous light level or for stage set lighting, e.g.:

• vertical, even illumination of cyclorama or horizon screen;
• diffused back lighting;
• asymmetrical soft light.

These compact and lightweight luminaires are designed for use with 625 W, 1000 W or 1250 W clear or frosted halogen lamps, and either gel or glass colour filters.

Excellent ventilation by natural convection ensures long life of lamps and filters.

Flexibility is provided by a large choice of single, double, triple or quadruple units assembled in either horizontal, vertical or square formats.

Each combination can be supplied for manual or pole operation.

Available version:

• ACP 1001 Single Unit - 390 x 450 x 230 5kg
• ACP 1002H Horizontal Double Unit - 730 x 450 x 230 11,5kg
• ACP 1002V Vertical Double Unit - 450 x 1010 x 230 13kg
• ACP 1003H Horizontal Triple Unit - 1015 x 450 x 230 17,5kg
• ACP 1004H Horizontal Quadruple Unit - 1310 x 450 x 230 23kg
• ACP 1004C Square Equadruple Unit - 730 x 1010 x 230 25kg
