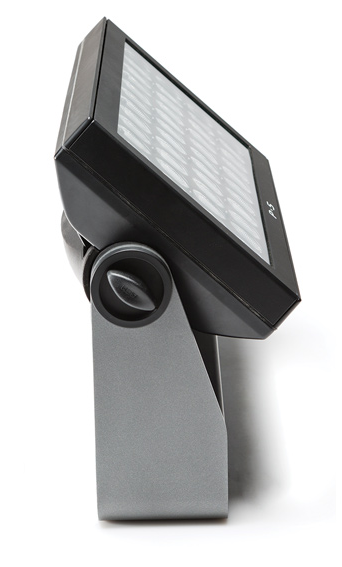

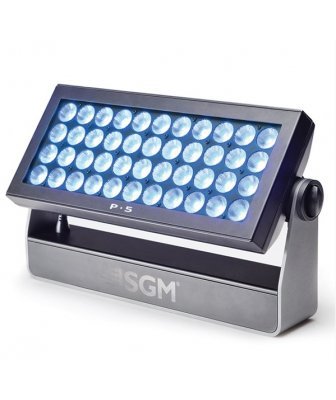

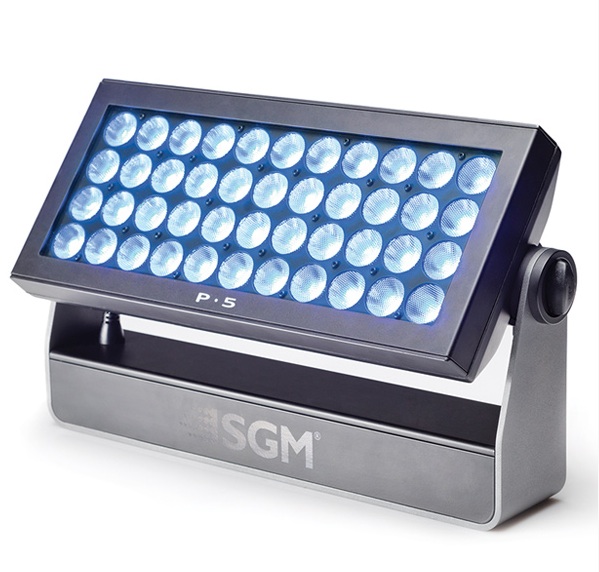

The P5 is a low-profile fixed, rectangular, full-color LED wash light that incorporates 44 x RGBW 10W LEDs. The fixture offers CTC and White Balance control, with just 400W power consumption and LED source life expectancy of 50,000 hours.
Lenses are interchangeable via the Narrow, Medium and Wide lens kit and the fixture boats 3, 4, 6 and 8 DMX channels. Set up is via an OLED graphic 5-button display.
Other features include: Simple Menu Structure; Upgradeable software (via DMX); IP65 rated (IP55 fan module); standard Neutrik powerCON connectors and standard 5-pin XLR for DMX In/Out, with dimensions (HWD) 268 x 500 x 120 mm.
As with all SGM’s new LED models, cooling methods have been improved via rectangular heatsinks, set-up and address procedures improved with the aid of internal diagnostics, and control procedures implemented to ensure that lamps run flicker-free.
Kategoria: zewnętrzne , pozostałe
Features
Pan/Tilt 0°/110°
CTC and White Balance control (WB)
Luminous source
44 pcs of high power 10W RGBW LEDs
Power consumption 408W /230V
Optics
Interchangable lens option
15°, 21° & 43°
Construction
Insulation Degree IP65, Fan module IP 55
Electrical Specifications
AC 208 - 250 V, 50 - 60 Hz
LEDs expected lifetime 50.000 hours*
(figure provided by manufacturer and obtained under manufacturer's test conditions)
Programming and Control
USITT DMX 512 A & RDM
Wireless DMX with W-DMXTM G4
3 to 10 DMX channels
Oled graphical display / 5 buttons
Single menu structure*Upgradable software via Uploader cable (P/N: 40500201)
Dimensions
300x500x122mm (4.8x19.7x11.8 in.)
Weight: 8.9kg (19.6 lbs.)
