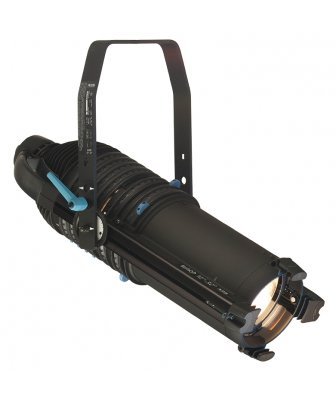

Warp

Warp is the only zoom profile spotlight with ring control. It features revolutionary finger-tip control of all shutters, gobos & iris, zoom & focus settings – from any position around the spotlight.

It utilises an 800 W axial lamp, and produces light output higher than a conventional 1200 W profile spotlight. Combined with a dichroic glass reflector, both the gate temperature and light beam temperature are low.

Conventional shutters replaced by 4 integrated blades, each with 360° endless rotation capability… to extend the limits of your creativity

Accurate fingertip control from any position around the spotlight

Stable settings, non sensitive to vibrations

Scale markings on the rings for presetting parameters before rigging

Category: profiles , reflectors

Tags: profil , lamp , lighting

Technical specification:

12°-30° and 22°-50° versions.
800 W halogen axial lamp, 230 V, 3200 °K, G9.5.
Light output higher than with a 1200 W conventional profile.
Dichroic glass reflector for low gate and beam temperature.
B size gate for maximum gobo definition.
Innovative ring control of focus, zoom, iris, gobo and shutters.
Individual 360° rotation of shutters and gobos.
Access to all controls from any position around the spotlight.
Independent lamp position and spot / even adjustments.
Holder for one iris diaphragm + one 360° rotating gobo (or two gobos without iris).
Stepless yoke positioning along the spotlight for balance adjustment.
Innovative, compact, robust, ergonomic design.
dichroic glass reflector
2 zoom lenses with anti-reflection coating
patented ring control of all functions
G 9.5 lampholder for axial lamp 800 W/230 V
1.6 m power supply cable without plug
Dimension: 748 x 379 x 495 mm (WARP/12-30), 655 x 379 x 495 mm (WARP/22-50)
Weight: 11,5kg (WARP/12-30), 11kg (WARP/22-50)

1 metal filter frame (185 x 185 mm)
