VMB TE-086

Code: VMB TE-86
VMB PROLifts

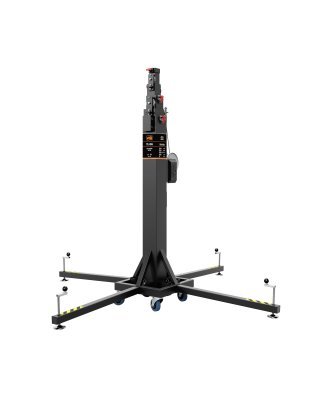

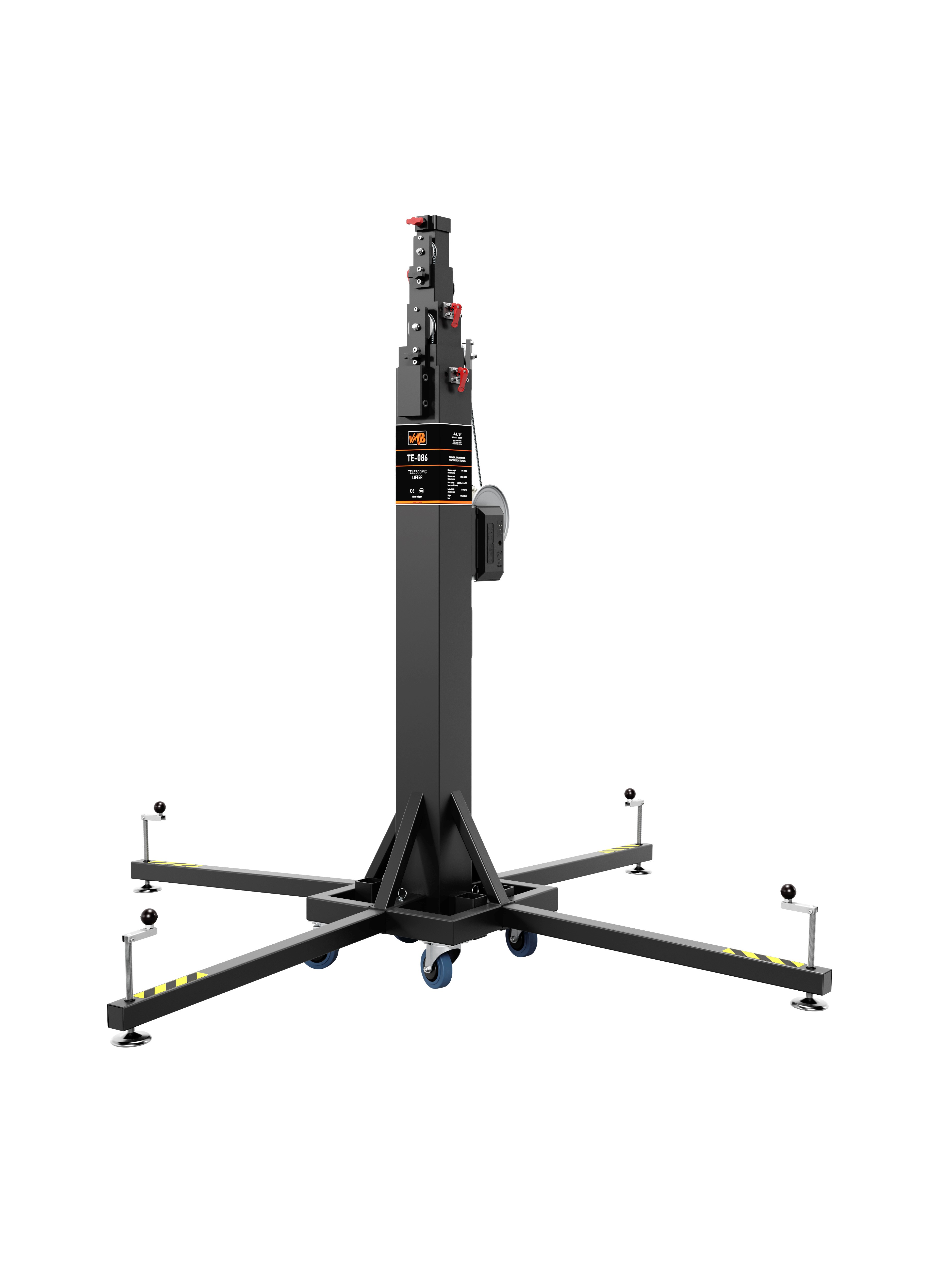

The TE-086 is the largest telescopic Towerlift VMB offer, designed for professional uses where a height of more than 6m is required and where a heavy load is being used. The five sections of the TE-086 are operated with a steel cable through a manual winch with a disc brake. The sections remain automatically fixed to required height by the locks of the exclusive ALS Auto Lock Security system. The ALS system fixes the sections to the required height, blocking the Towerlift and avoiding the cable to support the load when operating. It makes it impossible for the load to fall and guarantees complete working security. It has four stabilising legs that can be removed and come with disc feet, swivel wheels and a spirit level that helps to maintain the vertical position of the Towerlift. Each section is fitted with a manual screw so the user can control which section rises first. With the Towerlift folded and the legs back in their compartments, it forms a compact block which makes it easy to manoeuvre around thanks to the swivel wheels of the base.
The adjustable support PSU-086 make it possible to lift any kind of truss. Different accessories and supports are also available to lift any other loads. TE-086 Towerlifts are available in satin black TE-086B or in Standard silver zinc TE-086S.


Category: Tower Lifts

Tags: towerlift , robust towerlift


  • Share:

Technical specification:

  • Max. height - 6.5m (21.3′)
  • Max. Load - 300Kg (661 lb)
  • Safety- ALS (Automatic Lock System)
  • Work surface - 2.3 x 2.3m (7.5 x 7.5′)

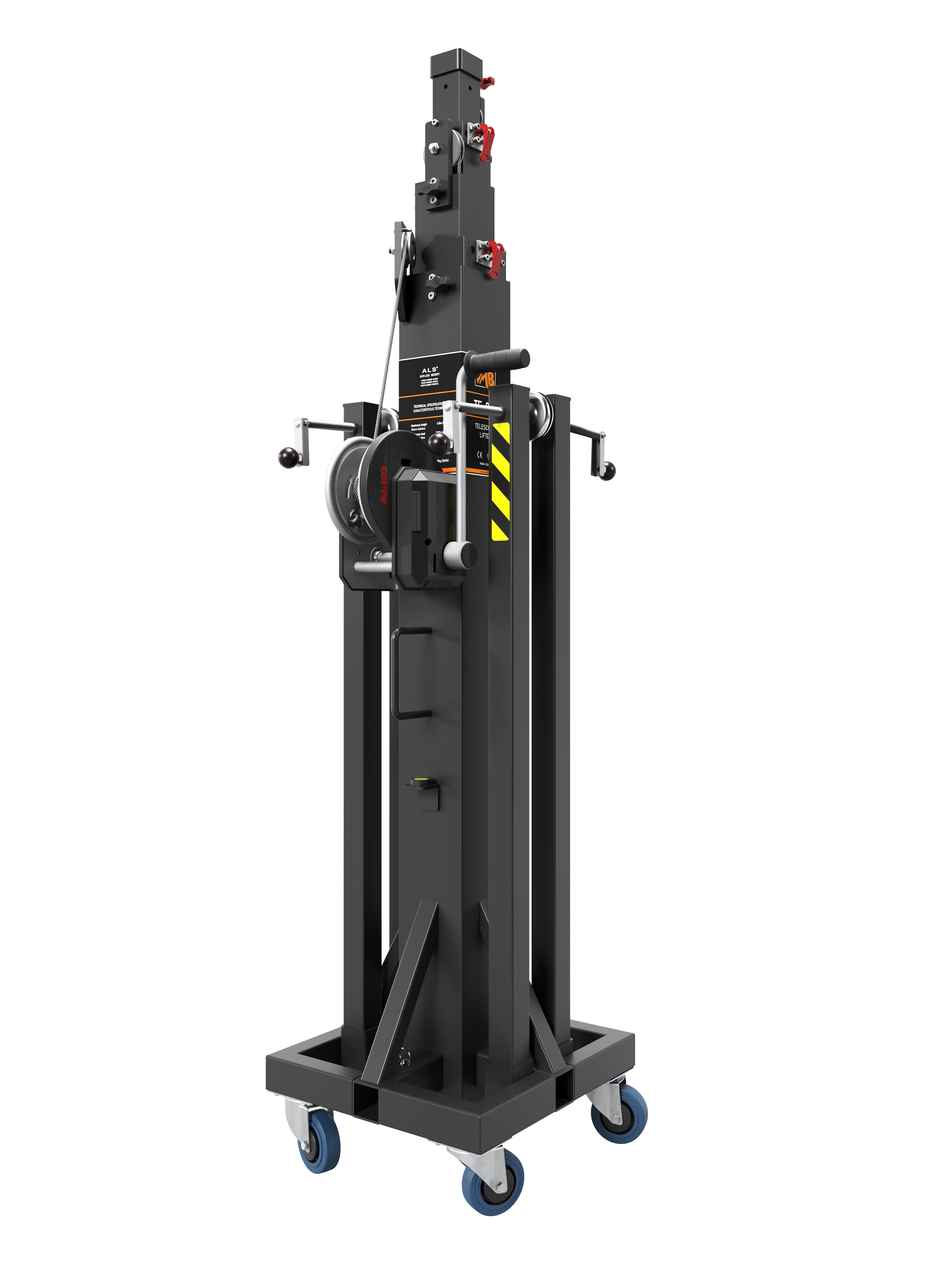

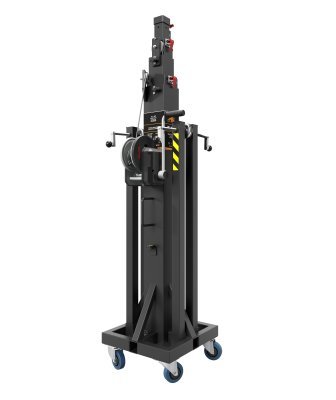

  • Folded height - 1.87m (6.1′)
  • Winch - 900Kg
  • Adaptor - 50mm (PSU-086)
  • Weight - 129Kg (284lb)

PSU-06B Adjustable support for truss, with U-piece and pin. Suitable for towerlifts with insertion of 35 mm.
Also available in silver color, ref.: PSU-06



PSA-01 Adjustable support for truss, with tilting alicraft grips. For towerlifts with insertion of 35 mm.



BT-061 Support for lights bar. Suitable for towerlifts with insertion of 35 mm.



PSU-074B
PSU-086B
TE-074 / TE-86 adjustable support for truss, with U-piece and pin. Insertion of 55 / 50 mm. Also available in silver color, ref.: PSU-074 / PSU-086



PSA-02 Adjustable support for truss, with tilting alicraft grips. For towerlifts with insertion of 55 mm.



BT-071 TE-074 support for lights bar. Insertion of 55 mm.



BT-072 TE-074 support for two lights bar. Insertion of 55 mm.



BT-062 Support for two lights bars. Suitable for all towerlifts with insertion of 35 mm.

BT-06 Support bar with length of 1.89 m. Suitable for all towerlifts with insertion of 35 mm.



BT-06 TE-074 support bar with length of 1.89 m. Insertion of 55 mm.



SPG-3529 Adaptor for Spigot with insertion of 29 mm. Suitable for towerlift insertion of 35 mm.



SPG-5529 TE-074 adaptor for Spigot with insertion of 29 mm. Towerlift insertion of 55 mm.



AT-01 Alicraft, suitable for towerlifts with insertion of 35 mm.



AT-02 Alicraft, suitable for towerlifts with insertion of 55 mm.



PSB-01 Plate support for towerlifts with insertion of 35 mm.



PSD-01 Flat truss support for towerlifts with insertion of 35 mm.



RH-01 Transport kit.
