• Europe C203 - adb-europe-c203.jpg

Europe C203

Code: ADB C203
ADB

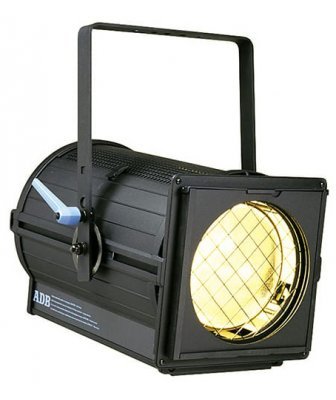

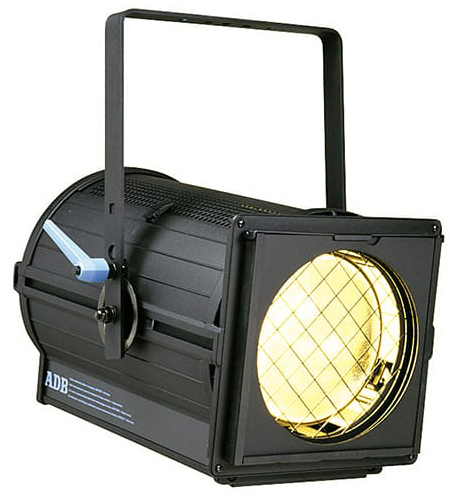

This spotlight, based on high efficiency optics, produces a semi-sharp-edged beam. It can be used for top, front or side lighting.

Field angle adjustable from 8° to 58° (4.5° – 54° beam angle).

Category: reflectors , PC & Fresnel

Tags: plano-convex , lighting


  • Share:

Technical specification:

  • Zoom: 8° – 58° Prism-Convex
  • Ø 200 mm prism-convex lens
  • GY16 lampholder
  • 2 m power supply cable (2 x 1.5 + 1.5 mm2 ) without plug
  • 1 integrated safety grid
  • 1 metal filter frame (245 x 245 mm)
  • Dimensions: 545 x 400 x 510 mm
  • Net weight: 12.6 kg
instrukcja robe INSTRUCTION
ADB STAGELIGHT Europe C203 - instruction

fotometria robe PHOTOMETRY

katalog robe CATALOGUE

ADB STAGELIGHT Europe C203 - leaflet

ADB STAGELIGHT New Products - catalog
inne robe OTHER
ADB STAGELIGHT Europe C203 - datasheet
