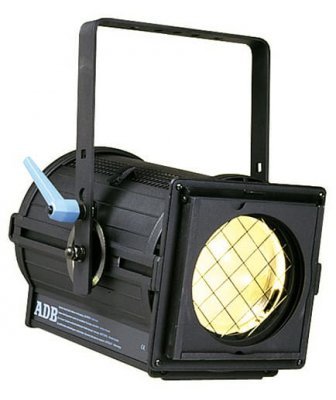

Europe C103

Code: ADB C103
ADB

This spotlight, based on high efficiency optics, produces a semisharp-edged beam. It can be used for top, front or side lighting.

Field angle adjustable from 7° to 61° (3.5°- 55° beam angle).

Category: reflectors , PC & Fresnel

Tags: plano-convex , lighting


  • Share:

Technical specification:

  • Zoom: 7° – 61° Prism-Convex
  • Ø 150 mm prism convex lens
  • GX 9.5 lampholder
  • 2 m power supply cable (2 x 1.5 + 1.5 mm2 ) without plug
  • 1 integrated safety grid
  • 1 metal filter frame (185 x 185 mm)
  • Dimensions: 480 x 340 x 420 mm
  • Net weight: 9.6 kg
instrukcja robe INSTRUCTION
ADB STAGELIGHT Europe C103 - instruction

fotometria robe PHOTOMETRY

katalog robe CATALOGUE

ADB STAGELIGHT Europe C103 - leaflet

ADB STAGELIGHT New Products - catalog
inne robe OTHER
ADB STAGELIGHT Europe C103 - datasheet
