VMB TE-074

Code: VMB TE-074
VMB PROLifts

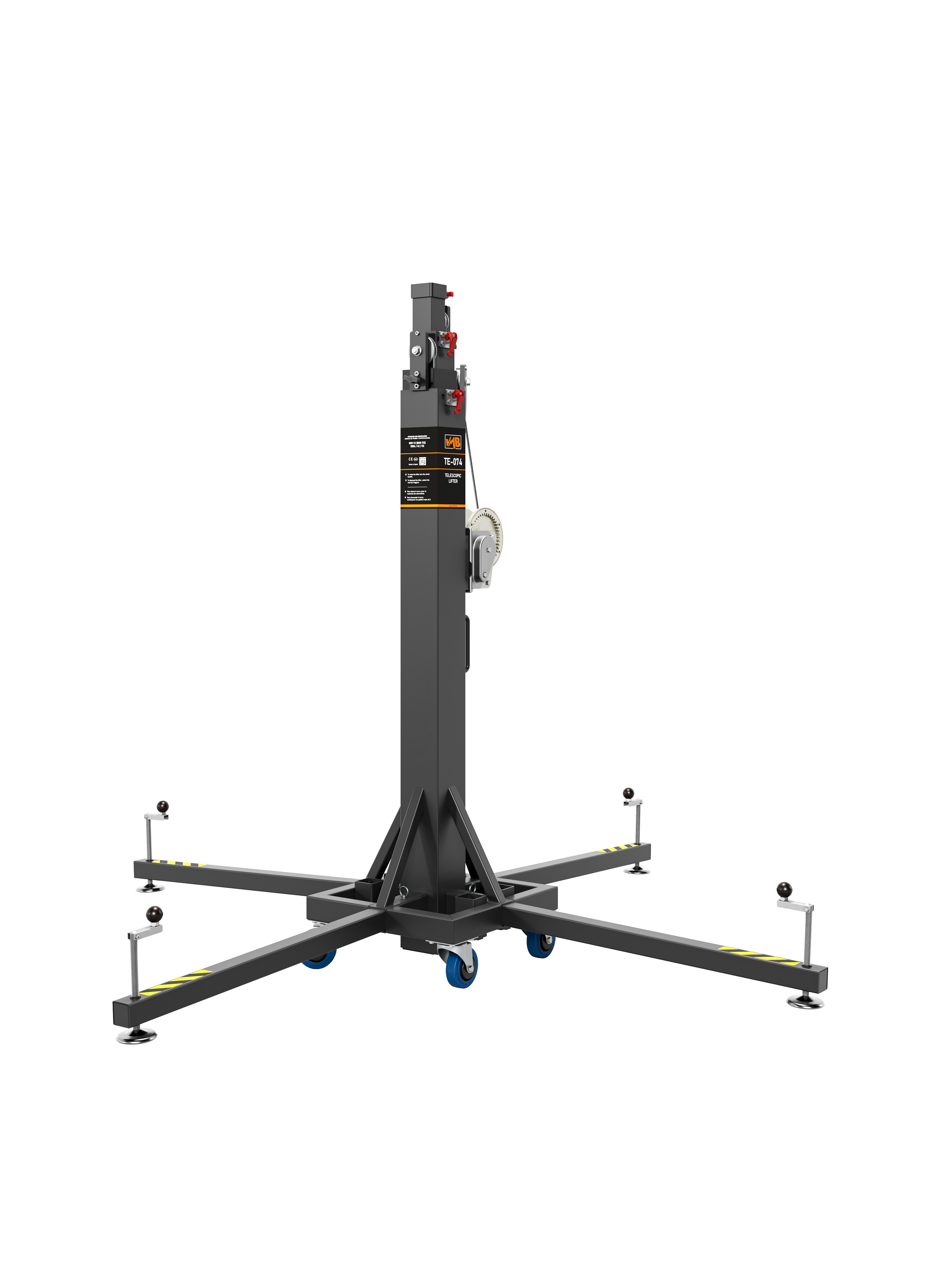

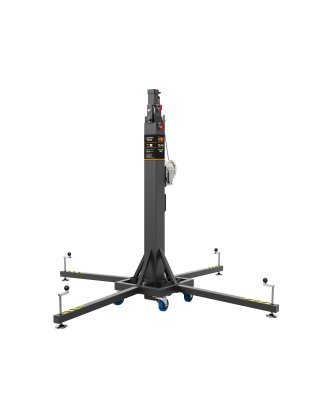

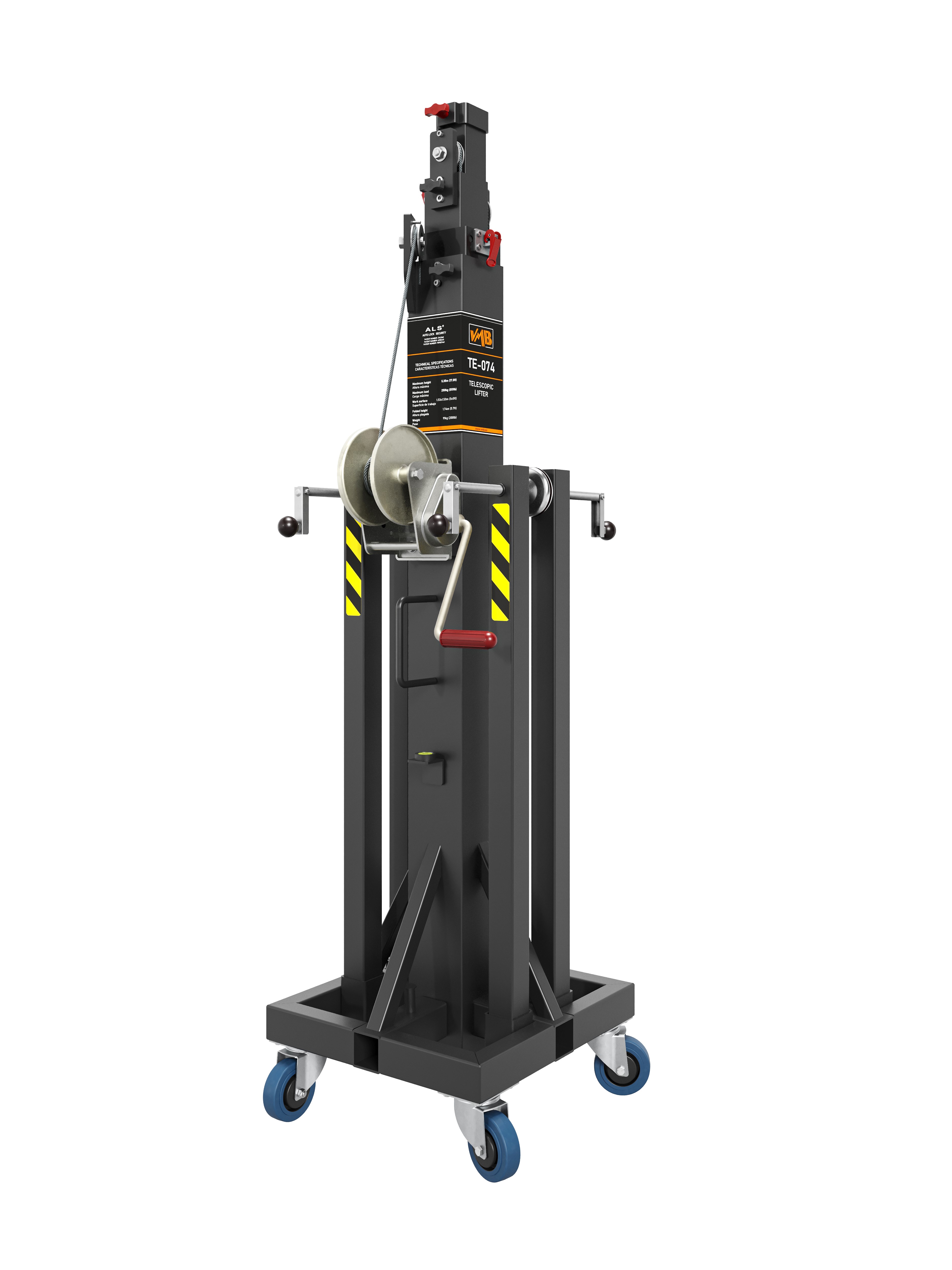

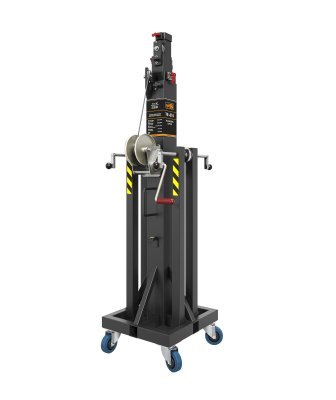

The TE-074 is a telescopic Towerlift for heavy loads, designed for professional uses with a maximum load capacity of 250 kg. The four sections of the TE-074 are operated with a steel cable through a manual winch with a disc brake. The sections remain automatically fixed to required height by the locks of the exclusive ALS Auto Lock Security system. The ALS system fixes the sections to the required height, blocking the Towerlift and avoiding the cable to support the load when operating. It makes it impossible for the load to fall and guarantees complete working security. It has four stabilising legs that can be removed and come with adjustable disc feet, swivel wheels and a spirit level that helps to maintain the vertical position of the Towerlift. Each section is fitted with a manual screw so the user can control which section rises first. With the Towerlift folded and the legs back in their compartments, it forms a compact block which makes it easy to manoeuvre around thanks to the swivel wheels of the base. The adjustable supports PSU-074 and PSA-02 make it possible to lift any kind of truss. A wheel kit (RH-1) is also available to transport the towerlift horizontally. Different accessories and supports are also available to lift any other loads. See page 12. TE-074 Towerlifts are available in satin black TE-074B or in Standard silver zinc TE-074S.
