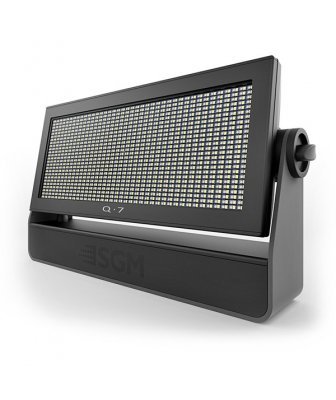

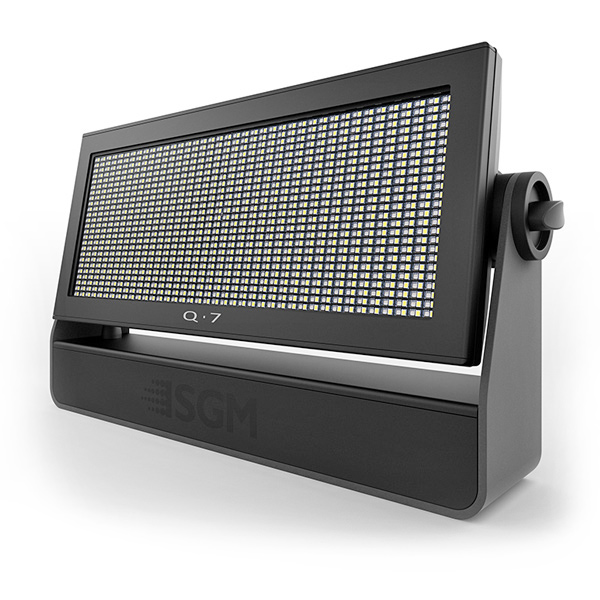

Q-7

As versatile as it is, the Q-7 is also suitable for indoor applications such as TV studios, theaters and other applications where a flicker-free wide flood of colored light is requested, meanwhile providing the entertainment designs with a flashing bright color strobe effect.

Q-7 is a low-profile and compact RGBW wash, blind and strobe. Containing 2,000 power RGBW LEDs it is a powerful adjustable multi-purpose fixture with a spread angle of 110°. Together with IP65 rating, a high output of 28,000 lumens and having a small physical footprint the Q-7 is an ideal fixture for outdoor use to light up buildings, facades, architectural structures and attractions.
As versatile as it is, the Q-7 is also suitable for indoor applications such as TV studios, theaters and other applications where a flicker-free wide flood of colored light is requested, meanwhile providing the entertainment designs with a flashing bright color strobe effect.

Category: other outdoor

s Optics Light source 2,000 x RGBW SMD LEDs (5,700K)

LEDs expected lifetime 50,000 hours*

Lens 110° fixed

Photometric Light output 28,000 lumen (all LEDs on)

3,100 lumen (red)

6,300 lumen (green)

1,500 lumen (blue)

19,000 lumen (white)

Efficacy 60 lm/W

CRI Min. 80

Features Pan/Tilt 0° / 110°

Electrical AC Power 208 - 250 V Nominal 50/60 Hz

Maximum power consumption 465 W (all LEDs on)

Typical power consumption 450 W (all LEDs on)

Power factor 0.99 PF (230 V)

Programming and Control Protocol USITT DMX 512 A

Setting and addressing Wireless DMX

RDM

Stand alone mode (programmable by RFID)

Oled graphical display / 5 buttons

Software upgradable via Uploader cable (P/N:40500201)

DMX channels 4, 6 or 8

Physical Dimensions (L x H x W) 497 x 268 x 122 mm (19.6 x 10.6 x 4.8 in)

Weight 8.1 kg (17.9 lbs.)

Material Aluminium

Lens Tempered glas front

IP class IP65 (fan module IP55)

Installation Mounting Any, but facing 100% down for permanent installation

Rigging possibilities Stand bracket (included) or hanging (Omera Clamps included)

Safety features Bottom mount for Safety wire

Thermal Temperature range, Operating -10° - 40°C (-14° - 104°F)

Temperature range, Start-up -10° - 40°C (-14° - 104°F)

Humidity (max.) 98%

Cooling Active, Forced air, temperature-regulated, low noise

Connections DMX data in/out IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out

Power Power cable 0.5m with bare ends

Certification EU Safety EN 60598-2-17 (EN20698-1), EN 62471

EU EMC EN 55 015, EN 55 103-1

Included Items Included Items Floor Stand (incl. screws)

2 pcs Omega Clamps

Wireless DMX G4 antenna

User Manual

Neopren pouch

Fixtures and Accessories Fixtures Order no: 80030502 - Q-7 Color Flood Light

Brackets Order no: 83060603 - BCC-2 Dual bracket

Order no: 83060604 - BCC-4 Quad bracket

Cables Order no: 83062011 - SGM USB uploader cable

Flight case Order no: 82051501 - Flight case for 4 pcs.

Optics

Light source 2,000 x RGBW SMD LEDs (5,700K)LEDs expected lifetime 50,000 hours*Lens 110° fixed

Photometric

Light output 28,000 lumen (all LEDs on)3,100 lumen (red)6,300 lumen (green)1,500 lumen (blue)19,000 lumen (white)Efficacy 60 lm/WCRI Min. 80

Features

Pan/Tilt 0° / 110°

Electrical AC Power 208 - 250 V Nominal 50/60 HzMaximum power consumption 465 W (all LEDs on) Typical power consumption 450 W (all LEDs on)Power factor 0.99 PF (230 V)

Programming and Control

Protocol USITT DMX 512 ASetting and addressing Wireless DMX RDM Stand alone mode (programmable by RFID)Oled graphical display / 5 buttons

Software upgradable via Uploader cable (P/N:40500201)DMX channels 4, 6 or 8Physical Dimensions (L x H x W) 497 x 268 x 122 mm (19.6 x 10.6 x 4.8 in)Weight 8.1 kg (17.9 lbs.)Material Aluminium

Lens Tempered glas frontIP class IP65 (fan module IP55)

Installation Mounting Any, but facing 100% down for permanent installationRigging possibilities Stand bracket (included) or hanging (Omera Clamps included)

Safety features Bottom mount for Safety wireThermal Temperature range, Operating -10° - 40°C (-14° - 104°F)Temperature range, Start-up -10° - 40°C (-14° - 104°F)Humidity (max.) 98%Cooling Active, Forced air, temperature-regulated, low noise

Connections DMX data in/out IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and outPower Power cable 0.5m with bare endsCertification EU Safety EN 60598-2-17 (EN20698-1), EN 62471EU EMC EN 55 015, EN 55 103-1

Included Items Included Items Floor Stand (incl. screws)2 pcs Omega ClampsWireless DMX G4 antennaUser Manual Neopren pouch

Fixtures and Accessories Fixtures Order no: 80030502 - Q-7 Color Flood LightBrackets Order no: 83060603 - BCC-2 Dual bracketOrder no: 83060604 - BCC-4 Quad bracketCables Order no: 83062011 - SGM USB uploader cableFlight case Order no: 82051501 - Flight case for 4 pcs.
