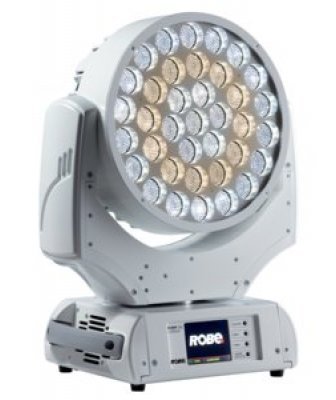

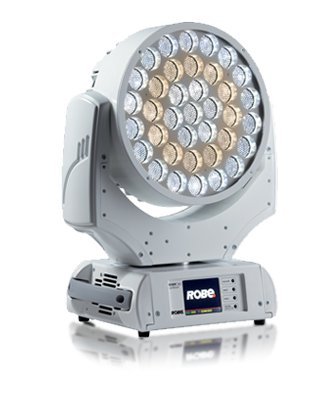

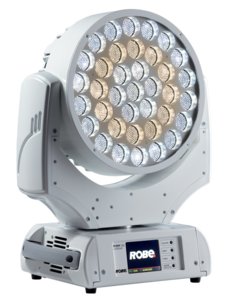

ROBIN® 600 LEDWash Smart White

Code: ROBIN600SM
ROBE Lighting

Spotlessly even light output of the highly popular ROBIN® 600 LEDWash in a PureWhite version, offering smooth output of white only variations. DayLight, WarmWhite or SmartWhite combinations of LEDs are arranged in 3 concentric rings for providing comprehensive and perfectly even wash coverage, ideal for car shows, theaters and thank to flicker free LED operation also for TV studios. Fast 15–60 degree motorized zoom, speedy pan and tilt movement and power ful fast strobing with pre-programmed strobe effects of all LEDs or per each individual ring can turn this wash unit into very effective blinding tool.

Category: moving heads , wash , LED Moving Heads


  • Share:

Source

  • Light source: 37 Cree MC-E LED multichips
  • Led Life Expectancy: minimum 60.000 hours
  • Typical Lumen Maintenance: 70% @ 60.000 hours

Optical System and effects

  • High efficient component optics
  • Linear motorized zoom 15–60°
  • White colour temperature : 6300-2800 K
  • High resolution dimmer 0–100%
  • Strobe effect with variable speed (max. 20 flashes per second)
  • Pre-programmed random strobe pulse-effects

Electrical Specification

  • Electronic auto-ranging
  • Input voltage: 100–240 V AC, 50-60 Hz
  • Max. power consumption: 415 W

Mechanical Specification

  • Height: 444 mm (17.5")
  • Width: 343 mm (13.5")
  • Depth: 203 mm (8.0")
  • Weight: 10,6 kg (23.4 lbs)

Movement

  • Pan movement range 450°
  • Tilt movement range 300°
  • 16 bit movement resolution
  • Automatic pan/tilt position correction
  • Built-in Pan/Tilt macros

Thermal

  • Maximum ambient temperature: 45 °C (113 °F)
  • Maximum housing temperature: 75 °C (167 °F)

Control and programming

  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
  • Optional wireless version available : CRMX™ technology from Lumen Radio
  • Control channels: 24, 16, 12, 10, 24
  • 5 DMX protocol modes
  • 3-editable programs, each up to 100 steps
  • Stand-alone operation
  • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
  • Ethernet port: Art-Net protocol, ready for ACN
  • Data in/out: Locking 3-pin & 5-pin XLR
  • Built-in analyser for easy fault finding

Rigging

  • Mounting points: 2 pairs of ¼-turn locks
  • 2x Omega bracket with ¼-turn quick locks

Approvals

  • cETLus pending approval
  • CE
