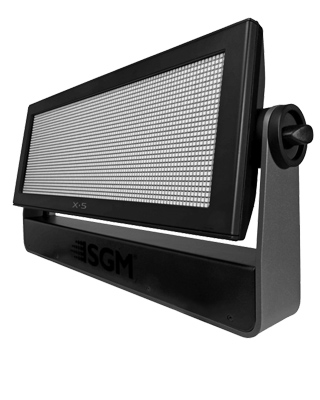

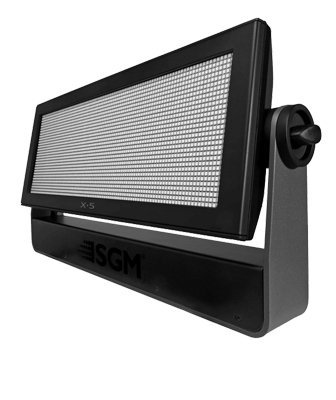

The X-5 is a white LED strobe, with 2,970 LED’s, power consumption of 360W (standby power of 6W), with lamp life of 50,000 hours. Housed in a black, slim aluminium chassis, it contains 160° lens as standard, tilt of 0°-180°, 1 or 4 DMX channels and set up is via OLED 5-button graphic display.
As with all SGM’s new LED models, cooling methods have been improved via rectangular heatsinks, set-up and address procedures improved with the aid of internal diagnostics, and control procedures implemented to ensure that lamps run flicker-free.
Features
Pan/Tilt 0°/110°
Luminous source
2.970 White LEDs
LEDs life 50.000 hours
Construction
Insulation Degree IP20
Electrical Specifications
Power supply AC 208 - 240 V, 50 - 60 Hz
Power consumption 360 W
Standby power 6 W
Programming and Control
1, 3 or 4 DMX channels
USITT DMX 512 A & RDM
Oled graphical display / 5 buttons
Simple menu structure
Upgradable software via DMX
Connectors
Standard NEUTRIK PowerCon
Standard 5 pins XLR for DMX in and out
Dimensions
497x268,4x78,4mm
Weight: 5,8kg
