• Gobostorm Plus MK2 - 201507060243_gobostorm_mk2_plus_grande.jpg

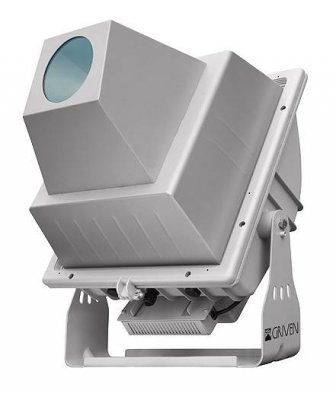

Gobostorm Plus MK2

Code: GR0468
Griven

GOBOSTORM PLUS is a fully weatherproofed (IP65) outdoor use high power zoom optics gobo projector, able to project changing images plus colour changes, which can be combined with other special effects. Using a 575watt metal halide lamp with a high precision optical group, GOBOSTORM PLUS can project images with high brightness and clarity. The high power lamp gives the ability to project at long distances or to create enormous impact when used for closer projections. GOBOSTORM PLUS has on board DMX control for the indexable rotatable gobo wheel, and for the eight colour wheel. The special effects (three prisms, five prisms, distortion and frost filters) allow creativity with abstract or pattern images and are also controllable on board, as is the strobe/blackout and mechanical dimmer. All these functions can alternatively be operated from an external digital controller for a maximum of 6 channels of DMX. The zoom and focus are manually set, and the projection angle range can be extended by the narrow and wide lens options. This gives much flexibility with image size and projection distance. GOBOSTORM PLUS is designed for easy installation and programming, together with reliability even in the harshest weather conditions. This is a new opportunity for advertising, logo or image creation, together with colour, in any outdoor urban environment.


  • lamp included
  • additional warranty for fixture
  • european product

Category: advert


  • Share:



LAMP SOURCE
Metal Halide lamp MSD 575, 575W, 43.000 lm, 6.000 K
Average rated life 3.000 hours, GX9.5 base (ordering code LP0997 - suggested)
Metal Halide lamp MSR 575, 575W, 49.000 lm, 7.200 K
Average rated life 1.000 hours, GX9.5 base (ordering code LP0504 - optional)
OPTICAL GROUP
The optical system utilises an aluminium parabolic reflector to produce a projection angle between 10° and 20° by the manual zoom and focus adjustment
1 rotating gobo wheel hosts either 5 metal or 5 glass gobos (D Size - Ext 53,3 - Int 40)
Effects wheel: 3-facet prism, 5-facet prism, 3-D prism, 1 frost filter
COLOUR CHANGER SYSTEM
1 rotating wheel for 8 different colours + white (including UV filter)
BLACK-OUT
Variable speed black out effect.
Linear 0-100% dimmer function.
9 FpS strobe maximum speed.
DIGITAL CONTROL
On-board control panel for digital data assignment and stand alone operation control
Master and Slave
6 channels of standard DMX 512
Test mode for troubleshooting operation
Wireless DMX control system (ordering code AD4120, AD4122, AD4124)
Programming software with USB compatible download IP65 box (ordering code AD4118)
Enhanced programming software with ETHERNET compatible download
IP65 box (ordering code AD4119)
ELECTRICAL SPECIFICATIONS
Power supply:
200-220 / 230-250V / 50-60Hz / 4.3A @ 230V
Power consumption: 730W
Self resetting fuse protection
Electrical class: I
Meets CE safety standards
HOUSING
Pressure die cast aluminium body, with an adjustable mounting yoke.
Scratch resistant polyester grey finish, which protects against
UV deterioration and general corrosion
Front tempered glass shock resistant
Convection cooling plus internal axial fans keep the level of heat within the unit constant and help dissipation through the body
Certified IP65 protection rating
Shock resistance: 0,8J
WEIGHT
Unit = 25.4 Kg
Ballast = 10 Kg
PACKING SIZE
Volume: 0,467 m3
Weight: 38,7 Kg
Size: L76 x W76 x H81 cm
Boxes: 1 cardboard box
