Datapath X4

Code: DPX4
Data Path

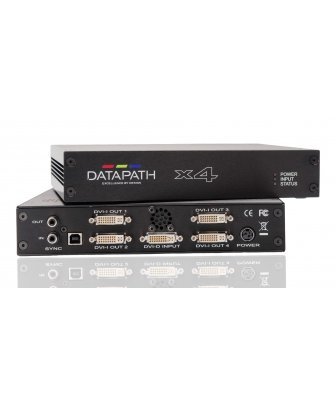

The Datapath x4 is a stand alone display wall controller that accepts a standard single or Dual-Link DVI input and can flexibly display this across four output monitors.

Each output can be driven as DVI or analog RGB, and can represent an arbitary crop region of the original input image. The output resolution and frame rate does not need to be related to that of the input, as the Datapath x4 will optionally upscale and frame rate convert each cropped region independently.

The x4 is now available in 1U rack mount format (438 x 172 x 40mm).

Key qualities of the Datapath x4:

• Ideal for use with edge blending projectors - supports image overlapping
• Splits a Dual-Link DVI, Single-Link DVI or HDMI* input (* HDMI input requires the optional DVI/ HDMI adapter)
• The input EDID is programmable to allow arbitary input resolutions and frame rates
• Flexibly drives multi-displays, each from any selected region of the input image
• Supports both DVI and analog RGB output monitors
• Stand alone operation supports auto-detecting of input resolution and output monitor native resolutions. Output screen configuration is defined by internal non-volatile memory
• Output configuration is programmable via a USB connection to a PC. Graphical utility allows easy control of cropping, scaling, rotation and gaps
• Available in two unit sizes
• Datapath x4-1U has an "Output Framelock" button to setup the unit with all four outputs set to exactly the same timings, providing smooth and clear video
