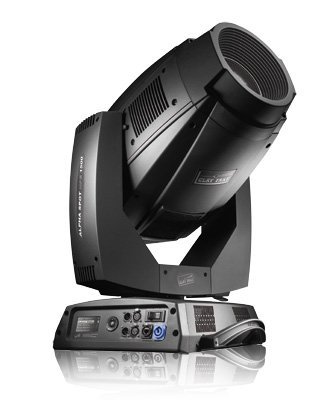

This 1500 W moving head is the most impressive graphic effects spotlight available, with an incredible array of colour and imagery devices, including 20 gobos on 3 wheels, animation disc, rotating prism and the exclusive Automated-Star-Gobo (patent pending). All devices are fully combinable with limitless rotation and morphing possibilities. The zoom has an extreme aperture range from 7° to 57° (1:8 ratio) with an amazing 120 bpm speed. An auto-focusing function combined with the Dyna-Cue-Creator make programming and operation easy and creative. A special high definition iris, the advanced Zoom-Tracking-Diffuser and silent operation position Alpha HPE 1500 at the edge of show-lighting technology.
200 - 240V 50/60Hz
2.000VA at 230V 50Hz (PFC electronic ballast).
1500W discharge lamp:
- Type: Osram Lok-it 1500W
- Cap: PGJ50
- Color temperature: 6,000 K
- Luminous flux: 135,000 lm
- Average life: 750 h
- Elliptic reflector with high luminous efficiency
- Electronic Linear Zoom 9,5°-57°
- Not linear Extra Zoom 7°-9,5
- Electronic focusing with “Stay-Sharp-Zoom” system (auto-focus)
- CMY Color Mixing
- 6-color wheel + open.
- linear CTO.
- 2 Rotating Gobo wheels (Ø 37,5 mm), each with 6 bidirectional and indexable gobos
- 1 wheel with 8 fixed gobos (Ø 31,5mm), at variable rotation
- Selectable "Gobo shake" function.
- "Morphing" effect.
- All the fixed and rotating gobos are easily interchangeable
- Dyna-Cue-Creator
- Animation Disc (Ø 37,5mm) that may be used alone or in combination with gobos
- A new conception Animated Star Gobo on dedicated channel (patented)
- 1 rotating prism (5 facet).
- Special high speed 16 segments mechanical iris
- 1 frost filter with Zoom synchronization
- Hybrid 0-100% dimmer (electronic + mechanical)
- Stop / strobe effect.
36/40 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Gobo Indexing Resolution: 16 bit
Focus Indexing Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input
Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
PAN and TILT lock for transport and maintenance.
Angle:
- PAN = 540°
- TILT = 252°
Maximum speeds
- PAN = 4.0 sec (360°)
- TILT = 3.2 sec (252°)
Resolution:
- PAN = 2.11°
- PAN FINE = 0.008°
- TILT = 0.98°
- TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.
Long life self-charging buffer battery.
Pre-set macros.
Function reset from control unit
"ENERGY SAVING" function: with the stop or total dimmer effect on, or with all the CMY filters full (black), consumption cut by 50%.
ON/OFF lamp control from the lighting desk.
Function reset from the lighting desk.
"AUTOTEST" function from menù
ETHERNET Ready.
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade with no power
Firmware upload from another fixture
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
Functions in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
In conformity with the European Union Low Voltage Directive 2006/95/CE and Electromagnetic compatibility Directive 2004/108/CE.
This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573 and CSA C22.2 No. 166 standards.
49.5 Kg (109.13 lbs)
for fixing clamps
48-51mm, max 300 Kg hook for truss
Ø 4mm, lenght 680mm safety cable
Handles set
foam shell for Alpha 1500
Roxter-Case (including 1 foam shell+wheels) for 1 Alpha 1500 / Shotlight Wash
